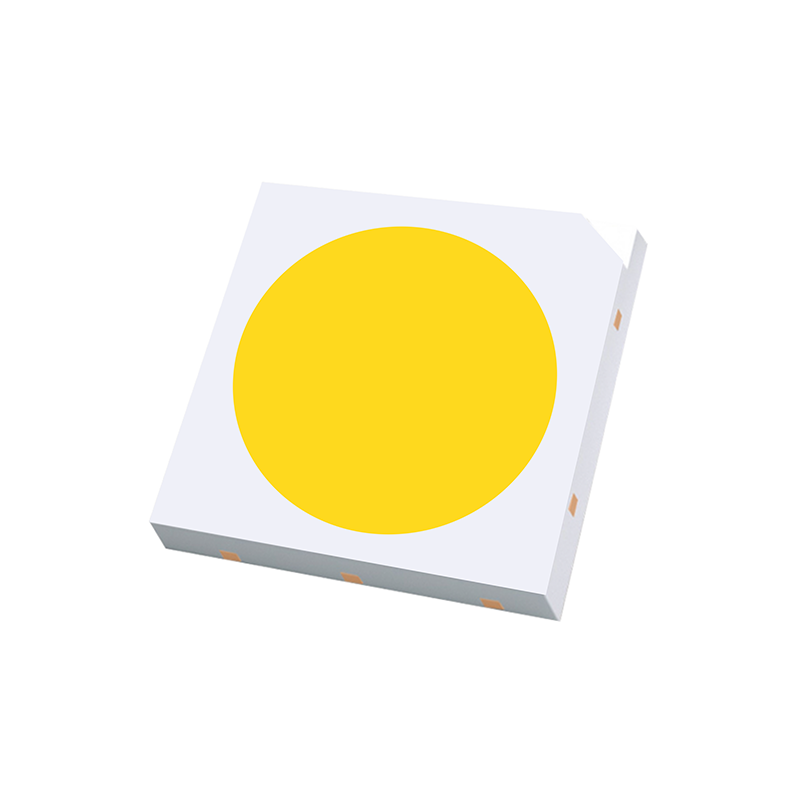

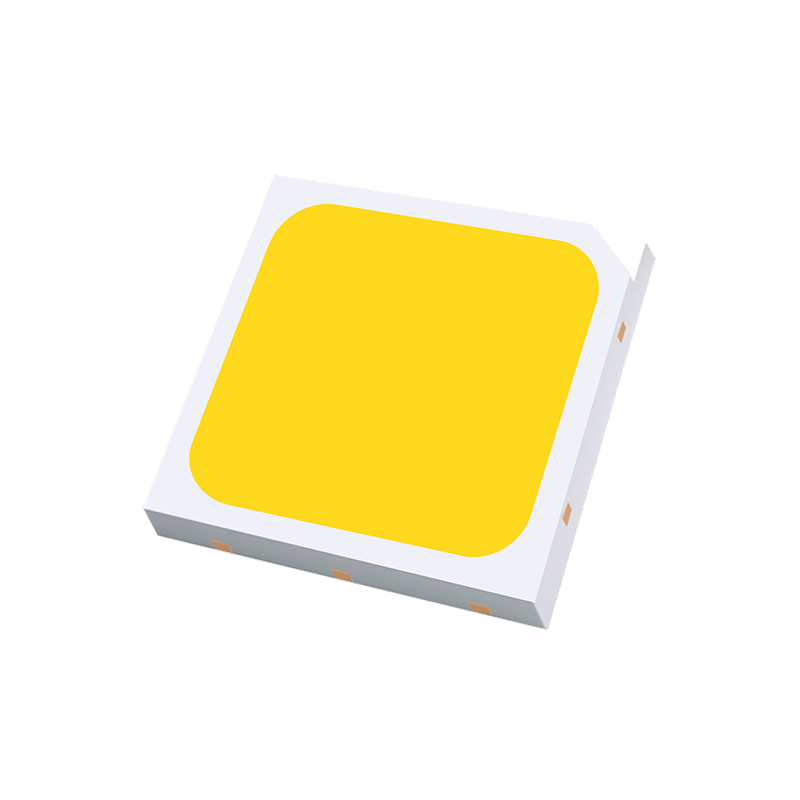

EMC series
Product Features
· Smaller light-emitting surface: can achieve higher central illumination
· Different power versions: a single can achieve 1100-1600 lumens light output
· High heat resistance, high heat dissipation, small size, light weight, UV resistance
· High and low voltage optional: meet different usage requirements
· High reliability EMC packaged products: balance light efficiency, reliability, lighting quality and comprehensive cost advantages
Product Applications
· Spotlight type application (high luminous flux spotlight, PAR, etc.)
· High luminous flux bulb
· Traditional halogen lamp lighting replacement
· Floodlight, mining lamp
· Architectural landscape lighting
· General lighting
Model no | 7070-(12C2B) | 7070-(14C1B) | 5050-(2C5B) | 5050-(8C1B) | 3030 |
CCT(K) | 3000-6500K | ||||
Power | 7-12W | 7-9W | 1-5W | 1-4W | 1-2W |
IF(mA) | 60-80 | 25-35 | 190-800(1050) | 45-160 | 150-300 |
Voltage (V) | 108 | 256 | 6 | 24 | 6 |
Flux (Im) | 1150-2000 | 1200-1500 | 220-900 | 190-750 | 150-270 |
Efficiency (lm/) | 160-210 | 150-190 | 170-220 | 160-230 | 130-180 |
Ra | 90 | 90 | 70 | 70 | 80 |
