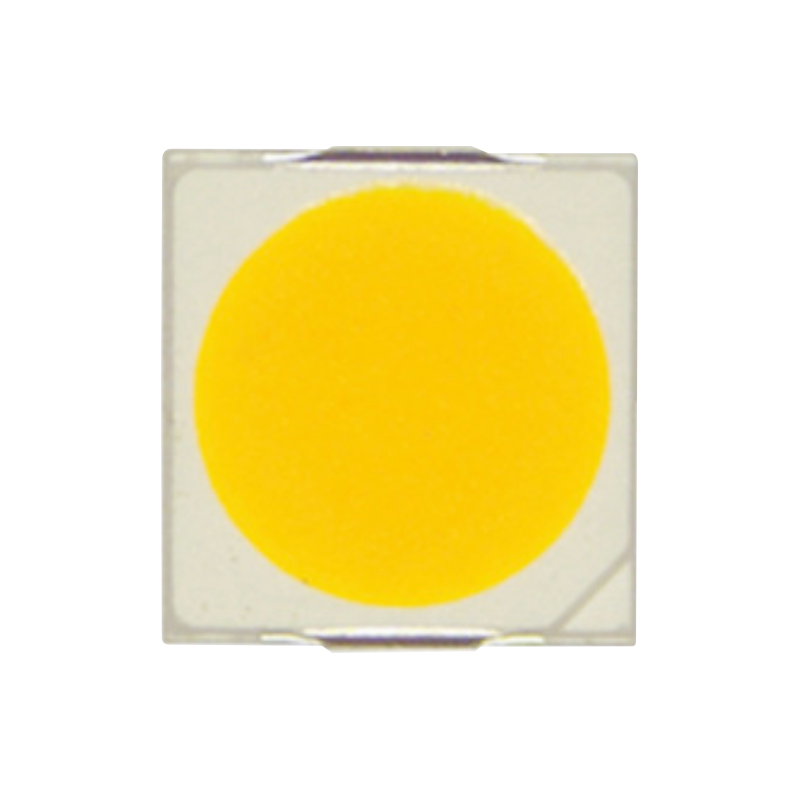

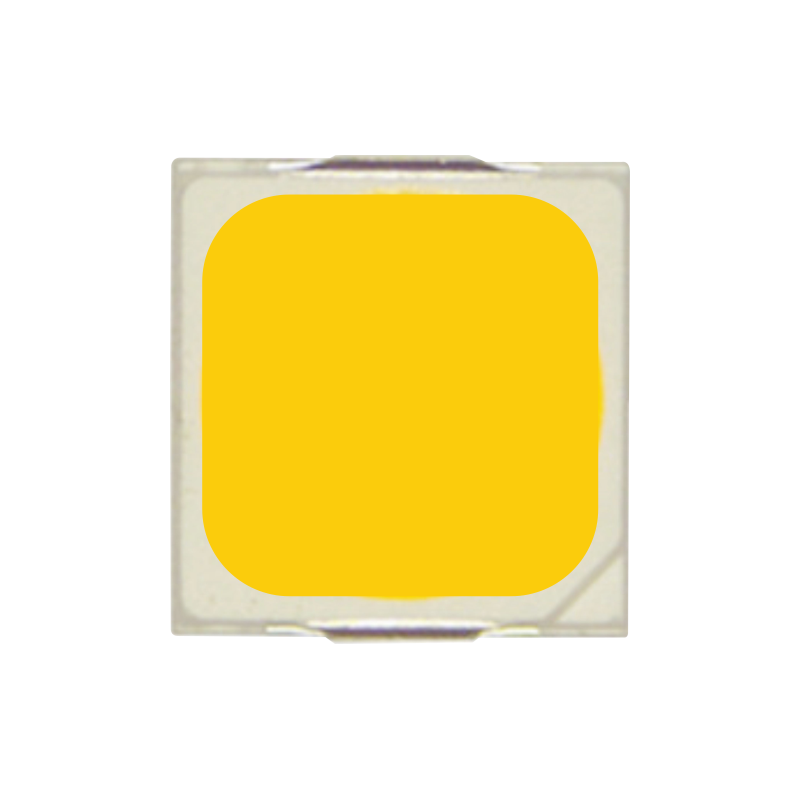

3535 series
Detail
Product Features
· High brightness, good color consistency
· Small volume, large luminous surface
· Small energy consumption, low light decay, long service life
· High power, Ultra-low calorific value
· Strong antistatic ability
| Model No | LC-3535E/S/W/L | LC-3535E/S/W/L | LC-3535E/S/W/L | LC-3535E/S/W/L | LC-3535E/S/W/L |
CCT(k) | 3000-12000K | ||||
Power | 0.2W | 1W | 2W | 2W | 2W |
lF(mA) | 60 | 300 | 150 | 120 | 60 |
Voltage(v) | 6V | 6V | 12V | 18V | 36V |
| Flux(Lm) | 30-41 | 100-160 | 200-350 | 200-380 | 200-380 |
| Efficiency(Lm/W) | 168-250 | 105-184 | 120-220 | 100-200 | 100-200 |
Ra | 80-97 | ||||
